Compact

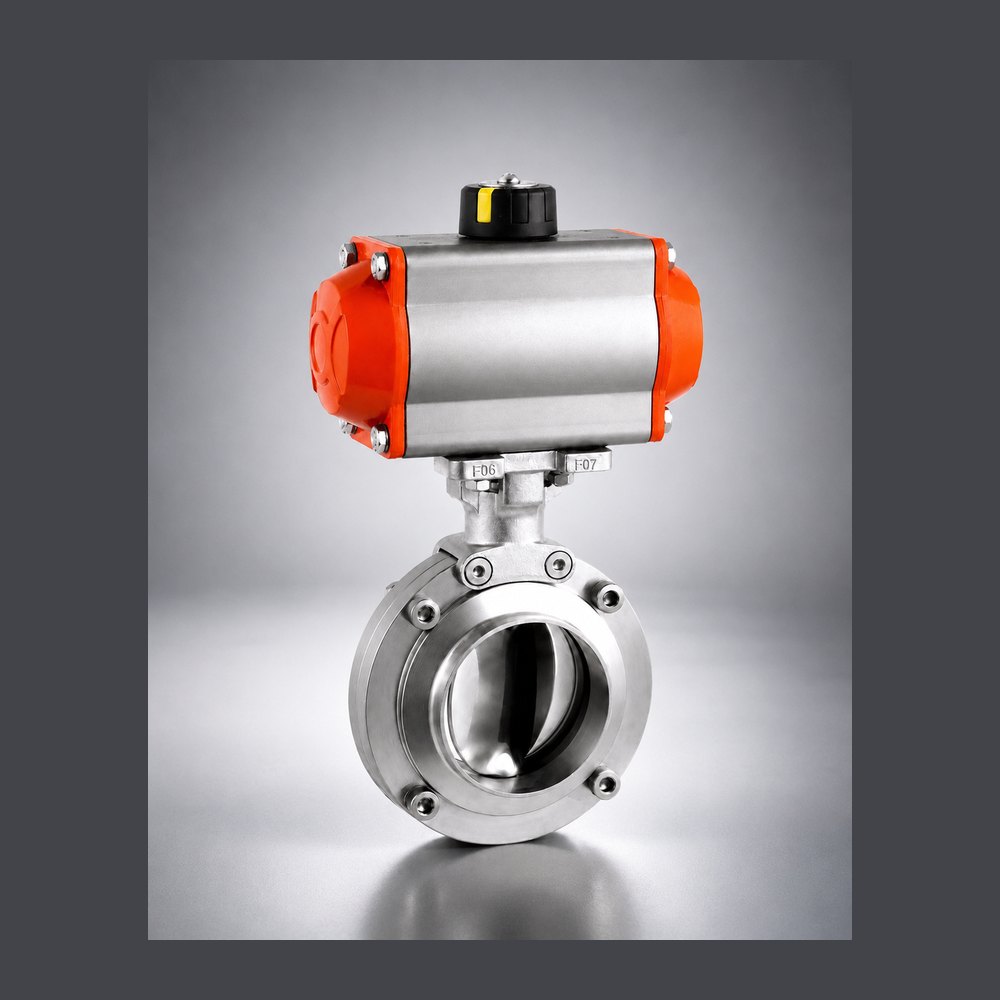

Pneumatic Butterfly Valves
Fast, compact automated isolation for hygienic lines.

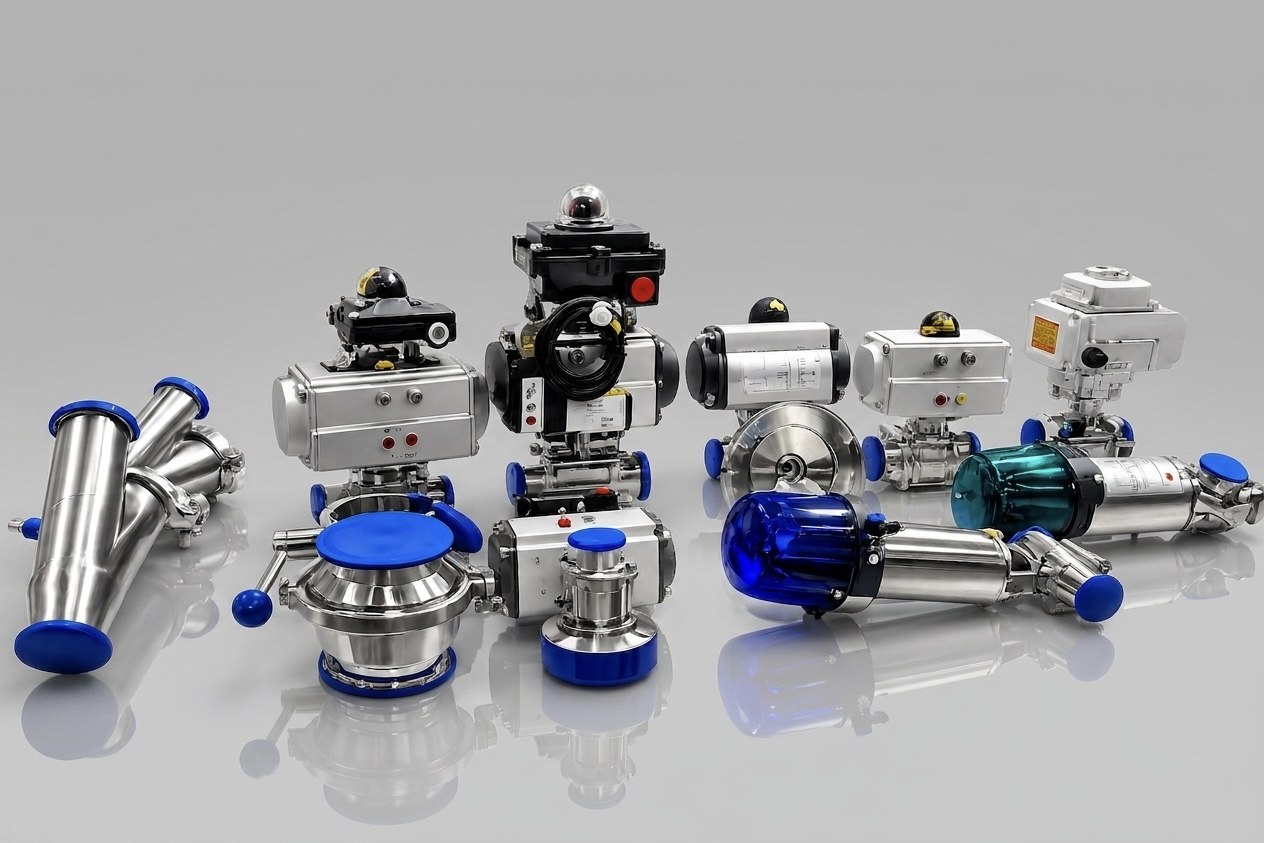

Pneumatic Sanitary Valves
Repeatable Valve Automation for Hygienic Process Systems
Pneumatic valve packages support repeatable open-close operation, remote control and process sequencing. Caspian Edge supplies actuated butterfly, ball, diaphragm and routing valve configurations for OEM skids and processing plants.
304 / 316L Stainless SteelHygienic DesignProject-Based SupplyDocumentation on Request
Selection FocusActuator sizing must reflect valve type, line conditions, fail position and available air supply.
Product Overview
Where this valve family fits in a hygienic process system
A pneumatic actuator converts compressed air into controlled valve movement. Packages can include spring-return or double-acting actuators, solenoids, limit switches, position feedback and control heads depending on the process architecture.
Product Range
Configurations available for project supply
Final availability and technical details are confirmed against size, connection, operating conditions, quantity and project documentation requirements.
Full Bore

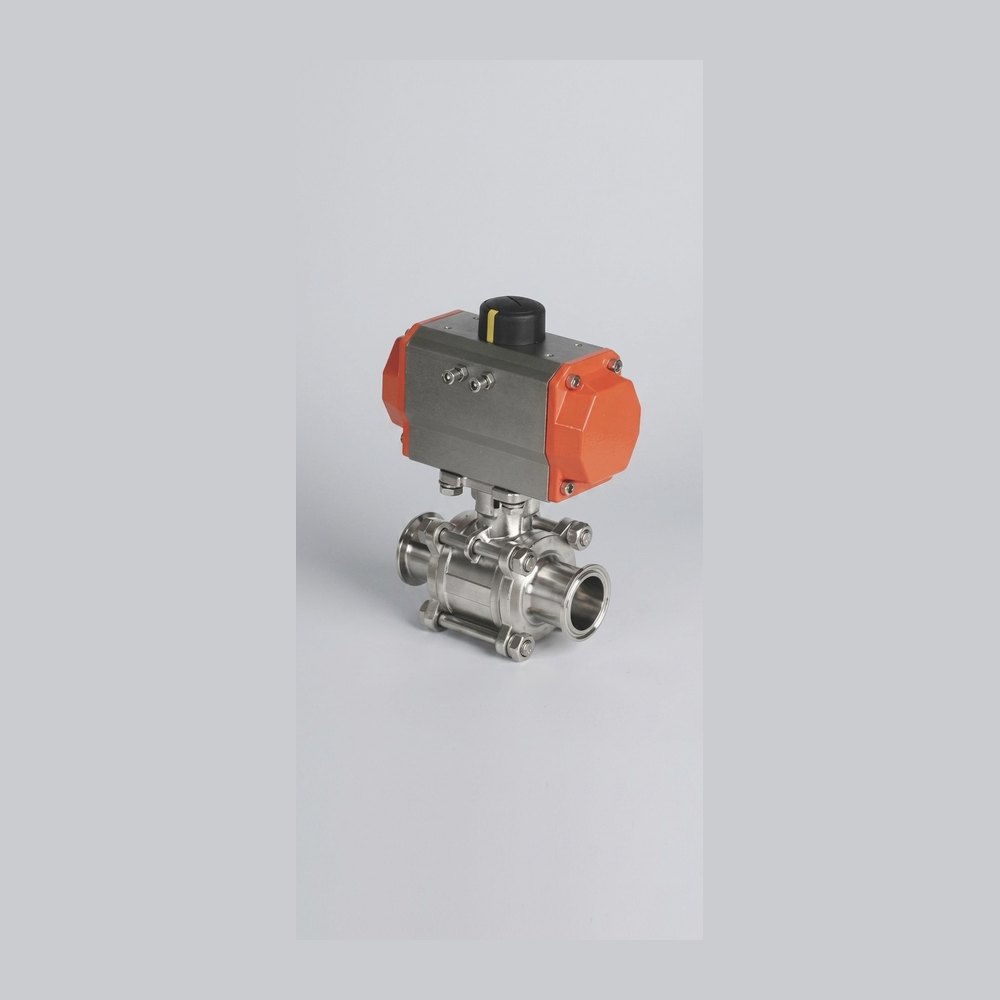

Pneumatic Ball Valves
Automated low-restriction isolation for product and utility flow.
High Purity

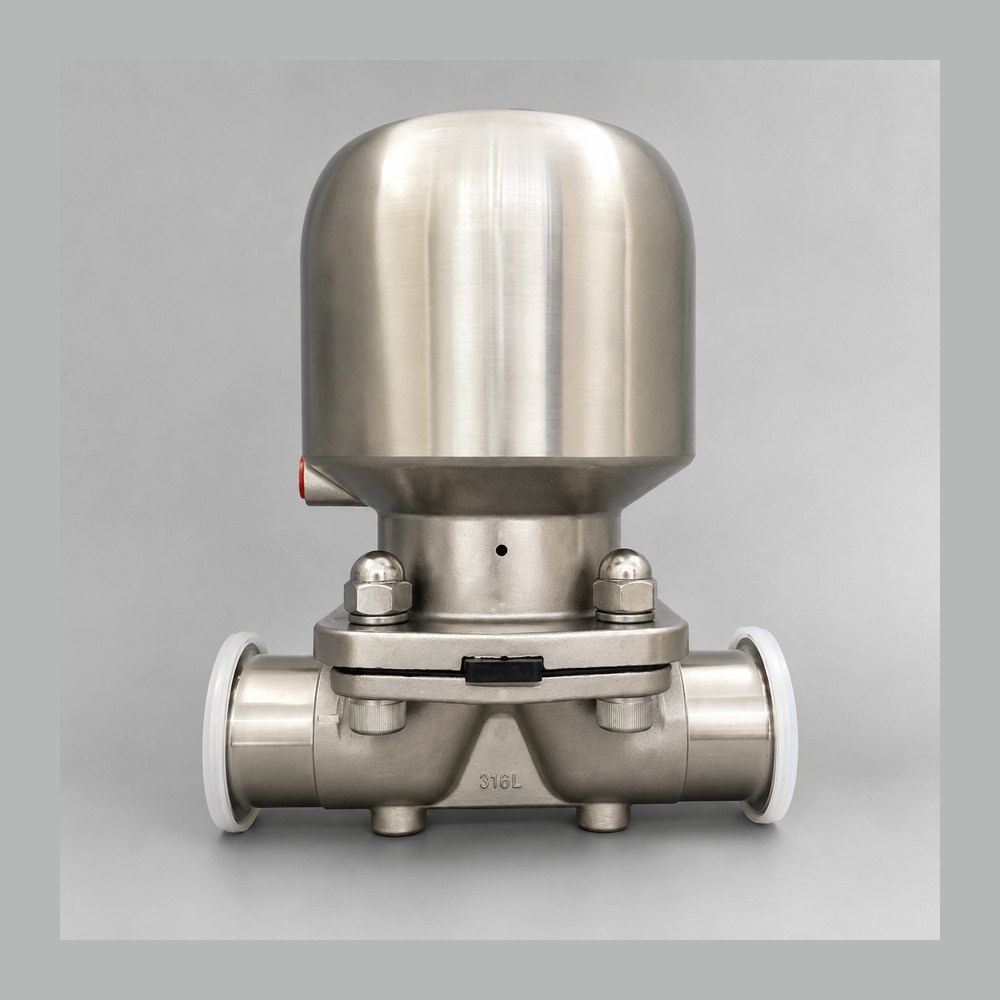

Pneumatic Diaphragm Valves
Automated clean isolation for sensitive and high-purity duties.
Routing
Automated Routing Valves
Mixproof and divert functions for complex process sequences.
Configuration & Options
Build the specification around the actual process duty
Valve selection is more reliable when body material, connection, seal, actuation, finish and documentation are reviewed as one package.
Materials304 or 316L stainless steel, selected for process duty and project requirements.
ConnectionsDIN 32676 clamp, weld, threaded or flanged options where applicable.
Surface FinishPolished hygienic finish options for product-contact surfaces.
DocumentationMTRs, quality records and project documentation available on request where applicable.
SizesCommon sanitary tube sizes plus project-specific sizes by request.
CoordinationTechnical coordination for BOMs, replacement valves, OEM skids and packaged supply.
Applications
Typical hygienic process applications
Caspian Edge supports processing facilities, technical buyers, OEMs and system integrators with valve supply matched to real project conditions.
CIP Sequencing
Automated routing and isolation through cleaning cycles.
OEM Skids
Repeatable valve operation within packaged equipment.
Tank Farms
Remote product routing and tank selection.
Process Utilities
Automated isolation of water, air and compatible utilities.
Selection Guidance
Compare sanitary valve functions
Use the process function as the starting point, then confirm material, cleaning method, pressure, temperature, actuation and documentation.
Related Process Components
Coordinate the valve with the complete hygienic line
Valves perform as part of a system. Caspian Edge can coordinate related tubing, fittings, clamps, gaskets and process components within the same project supply package.
Need help selecting sanitary valves for your process line?
Caspian Edge supports food, dairy, beverage, pharmaceutical and OEM projects with hygienic stainless steel valves, fittings, tubing and related process components. Send the line size, media, connection, operation and quantity for review.
Need valve selection support?Request Quote
