ASTM A270 Standard
Standard sanitary welded tubing for general food, dairy and beverage service.
Open page →01Category
02Subcategory
03Product Detail
04Datasheet + RFQ

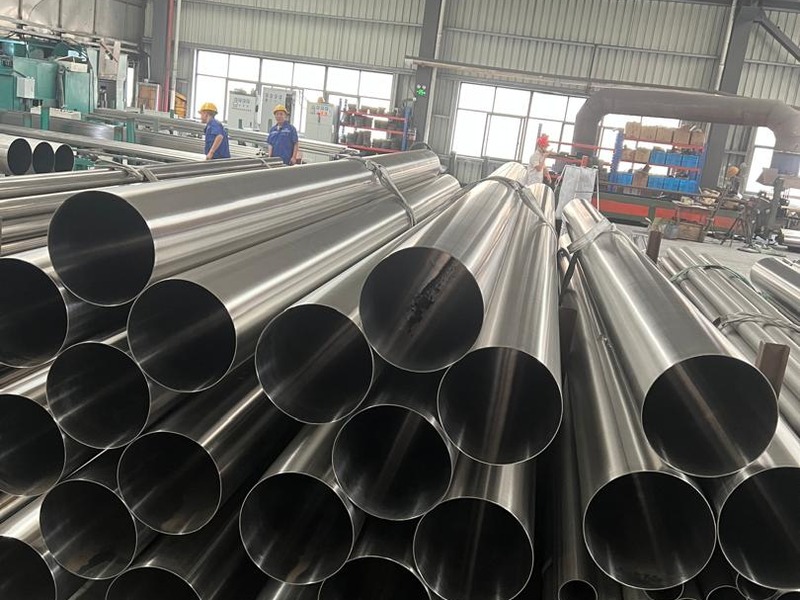

ASTM A270 Sanitary Tubing
ASTM A270 sanitary tubing for food, dairy, beverage and hygienic process applications.
304 / 316L material optionsWelded sanitary tubing commonPolished finish requirements by RFQSeparated from industrial A312 pipe positioning
Sizes & Dimensions
ASTM A270 sanitary tube dimensions.
Standard 6-meter (20 ft) lengths with bevel ends ready for orbital welding. Mill-polished ID (Ra ≤ 0.8 μm) standard, electropolished available.
| Nominal | OD (mm) | Wall (mm) | ID (mm) | Weight (kg/m) | Length (m) |
|---|---|---|---|---|---|
| ½" | 12.70 | 1.65 | 9.40 | 0.456 | 6.00 |
| ¾" | 19.05 | 1.65 | 15.75 | 0.717 | 6.00 |
| 1" | 25.40 | 1.65 | 22.10 | 0.977 | 6.00 |
| 1½" | 38.10 | 1.65 | 34.80 | 1.498 | 6.00 |
| 2" | 50.80 | 1.65 | 47.50 | 2.019 | 6.00 |
| 2½" | 63.50 | 2.11 | 59.28 | 3.221 | 6.00 |
| 3" | 76.20 | 2.11 | 71.98 | 3.882 | 6.00 |
| 4" | 101.60 | 2.11 | 97.38 | 5.205 | 6.00 |
Operating Conditions
Pressure-temperature rating for sanitary tubes.
Tubing pressure rating depends on diameter, wall thickness and temperature. Mill polish and EP have same mechanical strength.
Service Conditions
- Working pressure: 16 bar at ambient
- Burst pressure: > 100 bar
- Test pressure: 1.5× working
- Temperature range: –196°C to +400°C
- Steam SIP: +135°C compatible
- Cryogenic service: –196°C minimum
Actual ratings depend on size, material and operating conditions. Confirm via RFQ for project-specific requirements.
Standards & Compliance
Built to recognized sanitary and pressure standards.
Full documentation packages available including MTR, 3.1 certificates, surface roughness reports and pressure test records.
ASTM A270
Sanitary Tubing
Welded sanitary stainless tubing specification.
3-A 63-04
3-A Sanitary Tubing
Sanitary tubing standard for product contact.
ISO 2037
Sanitary Tubing
ISO standard for sanitary stainless tubing.
ASME BPE
Bioprocessing Equipment
Surface finish, materials and design for pharma/biotech.
AWS D18.1
Welding Standard
Specification for welding austenitic stainless steel tubing.
ASTM A967
Passivation
Chemical passivation treatments for stainless steel.
FDA 21 CFR
FDA 21 CFR 177
Food contact materials compliance for seats and seals.
EC 1935/2004
Food Contact
EU regulation on food-contact materials.
Product Variants
Sanitary Tube configurations for different process roles.
Multiple variants available to match your application requirements. Browse related products for complete process line coverage.
Electropolished Sanitary
EP interior for aggressive chemical service or pharmaceutical applications.
Request quote →Special Lengths
Custom lengths from 1m to 12m available. Pre-cut to project specifications.
Request quote →Technical Datasheet
Download the product-specific RFQ datasheet.
This PDF summarizes typical sizes, materials, standards, application notes and RFQ inputs for ASTM A270 Sanitary Tubing. Use it as a preparation document before sending a quotation request.
Engineer / Contractor RFQ Support
Send this item as part of a project package, BOM or comparison quote.
For accurate sourcing, include size, connection type, material grade, finish, quantity, pressure/temperature conditions, certificates required and target delivery timing.
Technical RFQ Guide
Specification points to confirm before quotation.
These are typical sourcing fields. Final availability and compliance should be confirmed against the exact project requirement.
Standard
ASTM A270 sanitary tubing
Material
304 / 316L stainless steel
Type
Welded / seamless depending on need
Finish
ID/OD polish by project requirement
Sizes
Common sanitary tube sizes by RFQ
Documents
MTR and finish documentation by supplier availability
Applications
Where this product is typically used.
Food processing lines
Relevant for sourcing discussions, project BOMs and maintenance replacement needs.
Dairy transfer and CIP lines
Relevant for sourcing discussions, project BOMs and maintenance replacement needs.
Beverage and bottling systems
Relevant for sourcing discussions, project BOMs and maintenance replacement needs.
General sanitary tube installations
Relevant for sourcing discussions, project BOMs and maintenance replacement needs.
Related Products
Continue building the RFQ package.
Technical Product Layout
ASTM A270 Sanitary Tubing — technical sourcing profile
Structured for engineers, contractors and plant buyers who need a clear RFQ-ready technical view before requesting pricing.
Technical Overview
ASTM A270 sanitary tubing for hygienic process lines in food, dairy, beverage and pharmaceutical environments.
Applications
- Sanitary process piping
- Dairy and beverage transfer lines
- CIP/SIP loops
- Skid fabrication and installation
Material Grades
- SS304 / SS316L
- Welded sanitary tubing
- Seamless options by RFQ
- Mill test reports by requirement
Surface Finish
ID/OD polished finish options; common sanitary finish requirements should be specified with Ra target and tube specification.
Standards
- ASTM A270
- 3-A sanitary tubing discussion
- ASME BPE where required
- Project weld and orbital welding requirements
Pressure / TemperatureDepends on tube OD, wall thickness, material grade, weld method and system design.
Connection TypesCommon RFQ connection formats are listed below. Final connection selection depends on plant standards and equipment interface.
Tube weld endsTri-Clamp ferrulesAdapters and reducersOrbital weld preparation
Related Products
Use these products to build a complete RFQ package around this item.
RFQ note: Values on this page are sourcing guidance only. Final model, pressure rating, temperature rating, certificates, elastomer compatibility and compliance must be confirmed against the exact supplier datasheet and project requirement.
Contractor & Plant Buyer RFQ
Need a contractor-ready quote package or BOM support?
Send line sizes, connection standards, material grade, finish, quantity, photos/drawings and required delivery timing. We help turn unclear product needs into a cleaner RFQ package for supplier comparison.
Common Questions
Frequently asked questions about sanitary tubes.
Engineering and procurement questions we hear most often. For project-specific guidance, send your application details via RFQ.
What is the difference between ASTM A270 and ASME BPE tubing?
A270 is the general sanitary tubing standard for food/dairy. ASME BPE is the bioprocessing-specific standard with tighter tolerances, controlled ferrite content, and EP surface finish.
A270 with optional S2 (Supplementary requirement 2) approaches BPE quality. For pharma/biotech, specify ASME BPE; for food/dairy, A270 is standard.
Should I use welded or seamless tubing?
Welded tubing (A270) is the standard for sanitary service — economically priced, consistent quality, and adequate for typical pressures. Seamless is more expensive.
For ultra-high purity or extreme pressure, seamless may be specified. For 99% of sanitary applications, A270 welded with proper documentation is appropriate.
What surface finish should I specify?
Mill polish (Ra ≤ 0.8 μm) is standard for general sanitary service. For pharmaceutical applications, electropolished (EP) interior with Ra ≤ 0.38 μm (SF4) is required.
For WFI and ultra-high purity, specify SF5 (Ra ≤ 0.25 μm). Surface roughness reports with profilometer measurements available.
What lengths are available?
Standard length is 6 meters (20 ft) which is the typical orbital welding rotor capacity. 3 meter (10 ft) lengths and custom cuts available.
For long pipe runs, longer custom lengths reduce weld count and installation time. Maximum practical length depends on shipping and handling — provide site constraints.
Is tubing supplied with bevel ends?
Yes — sanitary tubing ships with bevel ends prepared for orbital welding. Bevel angle: 37.5° per AWS D18.1 standard.
For installations using sleeve couplings or tri-clamp fittings, square-cut ends can be specified. Standard is bevel-prepared.
Can tubing be supplied with weld preparation per orbital welding spec?
Yes — specify orbital welding preparation in RFQ for tightest tolerance and roundness. Includes end-squareness inspection.
For automatic orbital welding (BPE applications), provide weld head specification for proper end preparation. ASME BPE MT-9 inspection available.
What documentation is provided?
Standard: EN 10204 3.1 MTR with heat number traceability. Optional: surface roughness report (Ra), passivation certificate, dimensional inspection, full BPE package.
For pharmaceutical applications, specify ASME BPE compliance package with ferrite content (DL designation), surface finish report, and hydrotest certificate.
